Wagner

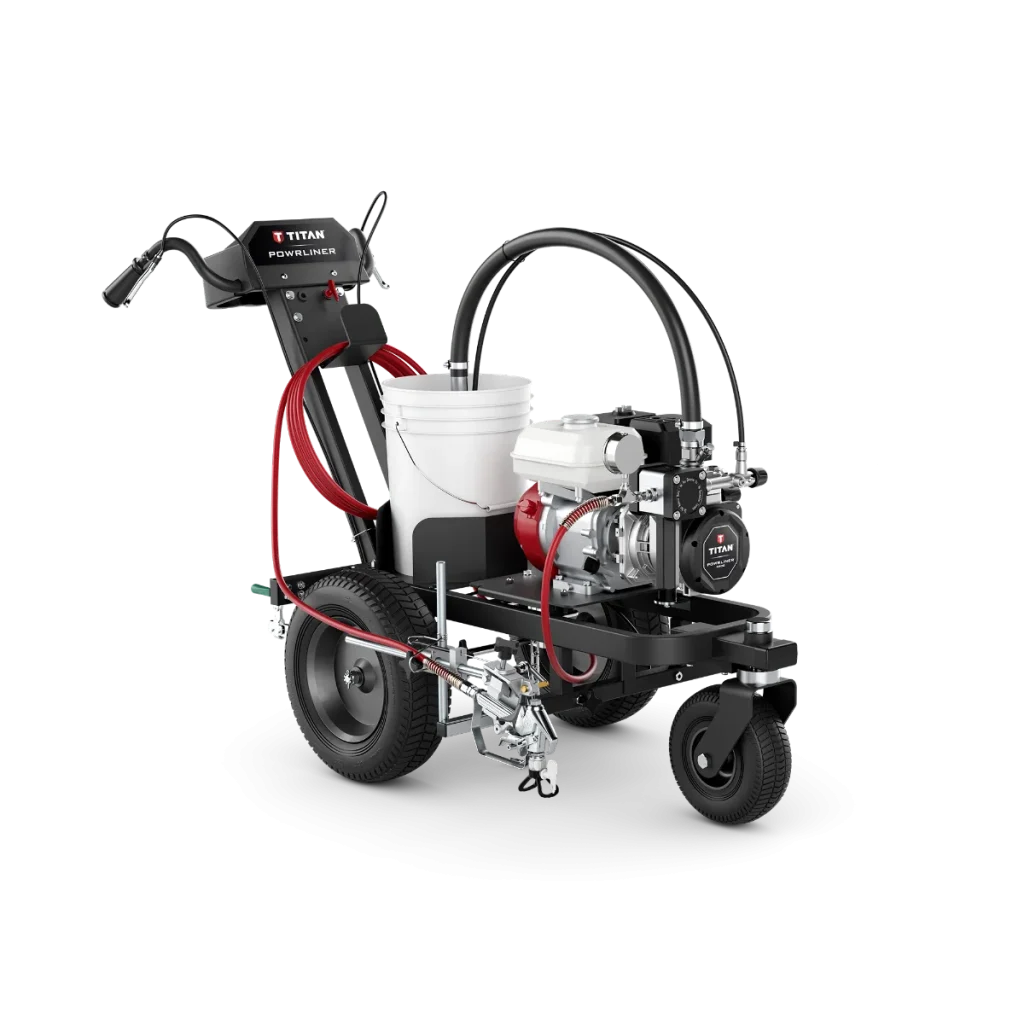

Powrliner 3500
The Titan PowrLiner 3500 is a hydraulic Airless line striper designed to produce sharp, consistent lines on demanding surfaces. Its compact PermaStroke system combines high-pressure output with durable construction for professional striping applications.
Key benefits
- 01Sprays latex and oil based field and pavement marking coatings
- 02Elite lifetime warranty offered on the hydraulic fluid pump
- 03PermaStroke Technology™ provides a lifetime of durability with no piston or packings to replace and only has two field serviceable wear parts
- 04Sealed hydraulic system has no electronics or clutches to burn out
- 05Sureflo™ Pusher Valve makes priming easy
- 06FlatLine Pulsation Dampener™ eliminates pressure fluctuations and deadband in the system
- 07Removable gun allows for full stenciling capability
- 08No-spill pump filter holds coating in the housing when removing
- 09Large 16" pneumatic tires for increased portability over rough surfaces
- 10New swing back design
Technical information
- Engine: Honda GX120, 120 cc
- Maximum delivery rate: 0.75 gal/min / 2.8 l/min
- Maximum operating pressure: 3300 psi / 22.8 MPa / 228 bar
- Maximum tip size with one gun: 0.027 in / 0.68 mm
- Maximum viscosity: 20,000 mPa·s
- Empty weight: 192 lb / 87 kg
- Dimensions: 165 × 82.5 × 100.3 cm
